LCD Display IEC61850 KF932 Handheld Digital Relay Test Kit
Description Of LCD Display IEC61850 KF932 Handheld Digital Relay Test Kit
KF932 IEC61850 Relay Tester is developed based on the intelligent substation related standards to analyze the SV, GOOSE, IRIG-B and IEEE1588 message, calculate the magnitude, phase and frequency of voltage and current, and real-time monitor of GOOSE virtual terminal.
Feature Of LCD Display IEC61850 KF932 Handheld Digital Relay Test Kit
| ● |
Receiving closed-loop testing of smart devices via SV, GOOSE message sending, subscription and publication of GOOSE messages; |
| ● |
Phase detection function is achieved by analyzing and calculating different control blocks; Binary input and output of the hard contact can be completed on the intelligent operation box transmission delay and SOE on the accuracy of the measurement; |
| ● |
SV and GOOSE exception statistics analysis and synchronization function to achieve the integration of the unit discrete, lost frame and absolute delay measurement. |
| ● |
With small size, touch screen operation of the convenience and powerful measurement and analysis and testing capabilities, greatly to meet the intelligent substation operation, maintenance and debugging of the protection, monitoring and control devices, IEC61850 complying IEDs, the merger unit and the station control system Detection and commissioning requirements. |
Specification Of LCD Display IEC61850 KF932 Handheld Digital Relay Test Kit
1 Time signal
| Time signal |
| IRIG-B |
Time accuracy<1us typ |
| IEC 61588 |
Time accuracy<1us typ |
2 Mechanical parameters
| Mechanical parameters |
| Display screen |
4.3’touch LCD screen |
| Size |
176×100×58 mm |
| Weight |
≦0.75kg |
3 Temperature range
| Temperature range |
| Altitude |
≤5000m |
| Ambient temperature |
Normal operating temperature:-10～55℃
Storage and transportation:-25～85℃ |
| Relative humidity |
5％～95％ |
| Atmospheric pressure |
60～106KPa |
Advantage Of LCD Display IEC61850 KF932 Handheld Digital Relay Test Kit
The most light and powerful handheld digital relay tester for IEC61850 testing;
Applied to digital protection relay, Measure & control device, IEC61850 Complying IEDs ,Merge Unit and substation control system testing and detection;
Touch screen and keypad, to meet different using habits.
FAQ
Q: Can the device test the function of Synchronising or synchronism-check relays?
A: Yes.
Q: How about the guarantee of repair?
A: All of our products have 3-years guarantee of free repair, and life-long maintenance.
Q: What is your technical advantages?
A: Touch screen and keypad, to meet different using habits.
4400mAh large capacity lithium battery, continuous work for more than 10 hours.
Small size, easy to portable.
Product Tags:
|
|

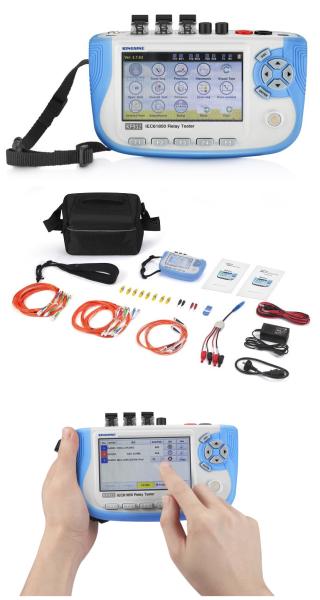

LCD Display IEC61850 KF932 Handheld Digital Relay Test Kit Images
|
